Model types

Domain Model

A Domain Model is the tactical view: what is actually inside a bounded context. Aggregates and their entities, the value objects they are made of, the services, repositories, and factories around them, and the commands and events that move them.

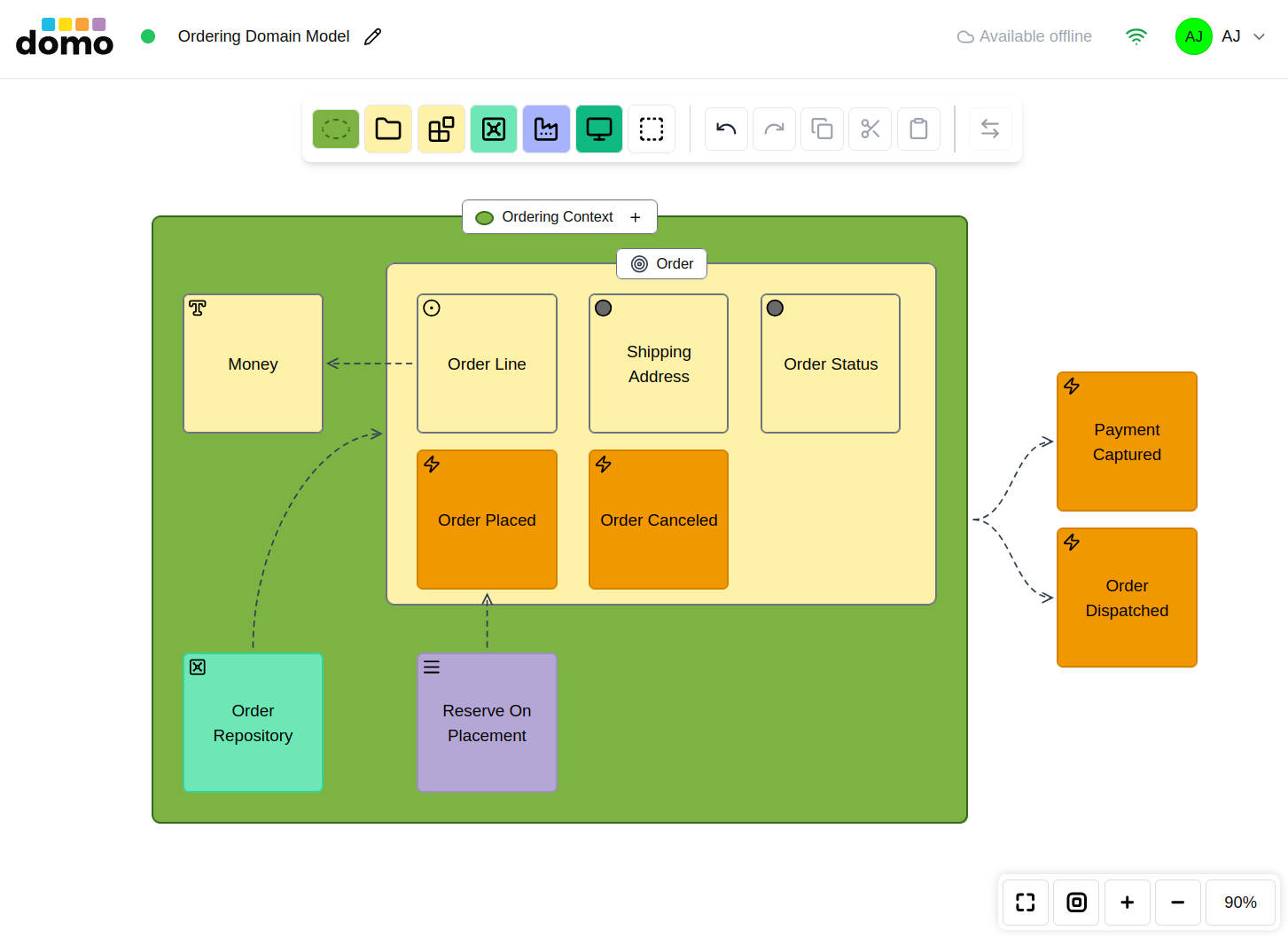

A Domain Model canvas with an aggregate containing entities and value objects.
A Domain Model canvas with an aggregate containing entities and value objects.

The elements

The toolbar reads left to right from the largest container to the smallest detail.

Context (dropdown) holds Bounded Context, Big Ball of Mud, Bubble Context, and Interchange Context. This is the boundary the model lives in.

Module: a named grouping inside the boundary.

Model (dropdown, two columns) holds the tactical types:

Element Symbol What it is
Aggregate Yellow three rings A consistency boundary. The node is the aggregate root.
Entity Yellow two rings Something with an identity that persists through change.
Value Object Yellow dot An immutable value with no identity.
Domain Service Yellow arrow Domain behavior that belongs to no single entity.
User Role Yellow user The kind of actor involved.
Record Yellow brackets Data shape: columns.
Struct Yellow braces Data shape: attributes; possibly nested.
Type Yellow T Data abstraction.
Command Blue exclamation A request for the model to do something.
Domain Event Orange lightning bolt Something the model decided has happened.
Policy Purple document A rule that reacts to an event.
Saga Purple arrows cycling A long-running coordination across steps.

Repository and Factory have their own buttons, next to the Model dropdown.

View: a read model.

Extra (dropdown) holds User Interface, Query, and Note.

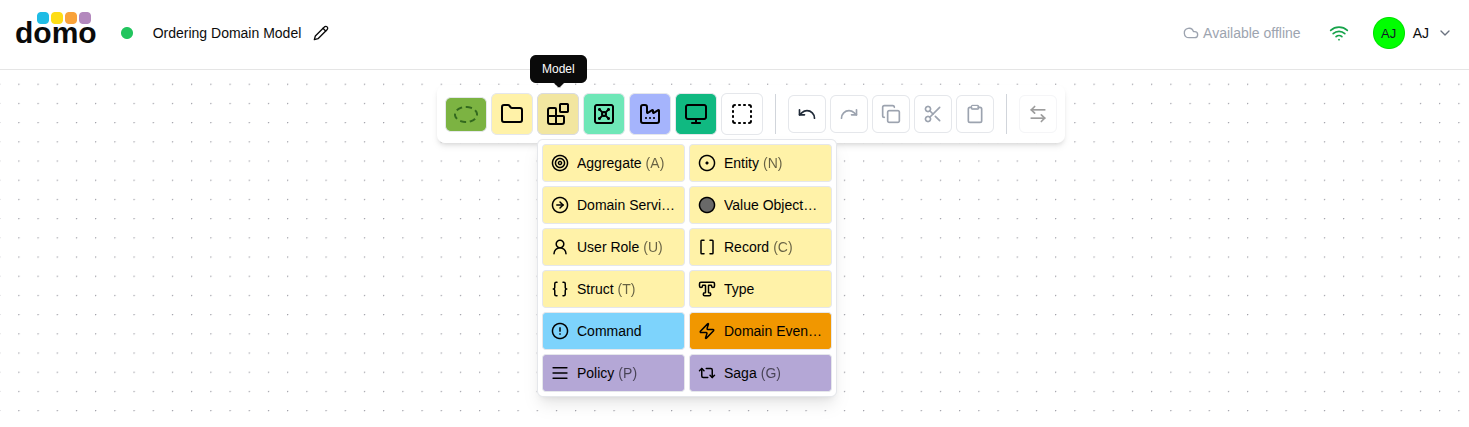

The Domain Model toolbar with the two-column Model dropdown open.
The Domain Model toolbar with the two-column Model dropdown open.

Common Properties

All model elements rendered in graphical form have properties. The properties can be set by using the Properties dialog box. Hovering your mouse pointer over an element, you'll see a table/grid icon. Click the icon and the properties dialog box will appear.

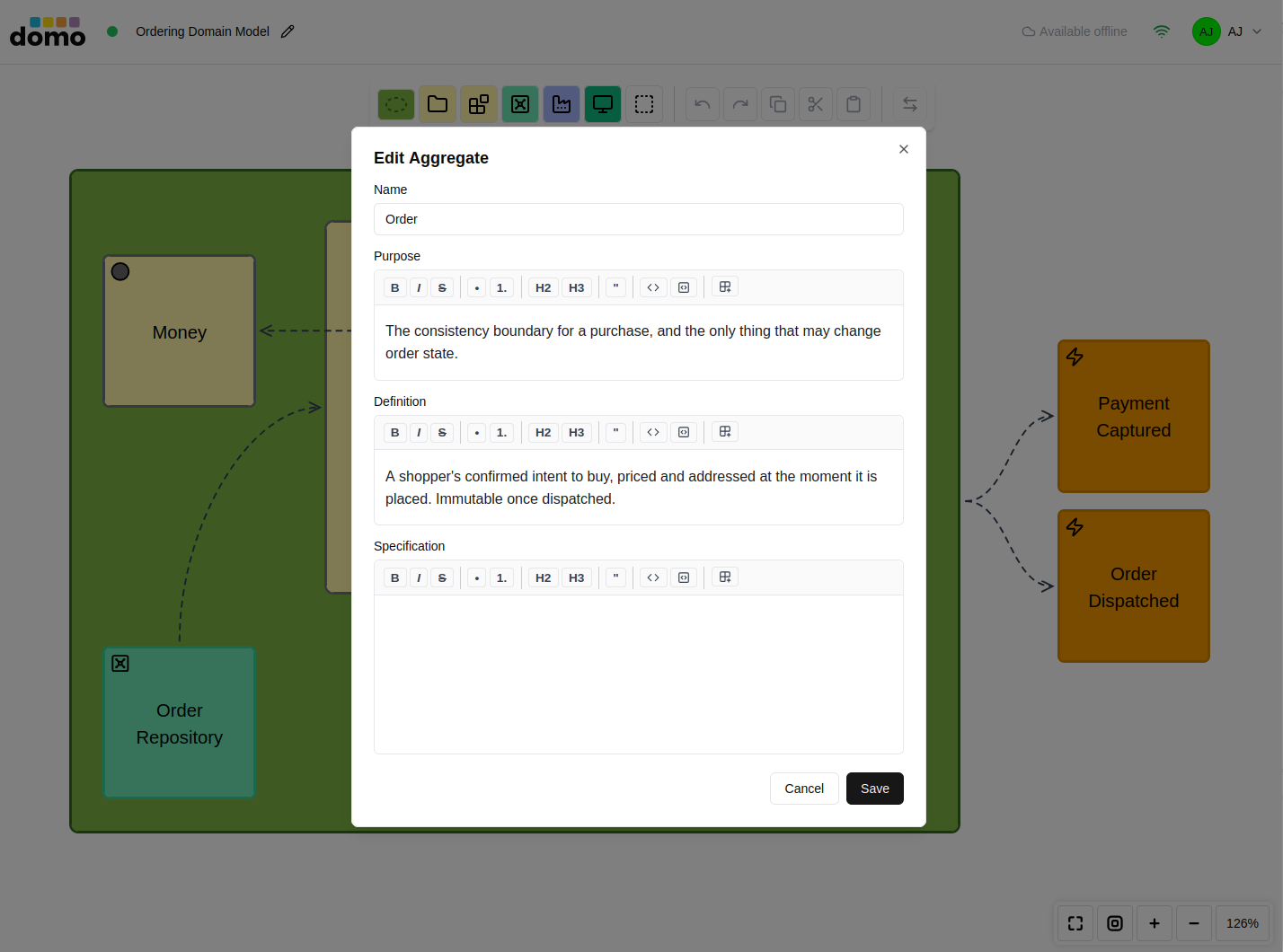

The element properties dialog with the Name, Purpose, Definition, and Specifications fields.
The element properties dialog with the Name, Purpose, Definition, and Specifications fields.

Enter pertinent descriptions for Purpose, Definition, and Specifications. The Specifications can include source code snippets formatted as markdown codeblocks.

Note: When naming a model element, use PascalCase, as you would when naming a class or other first-class type. The editors intelligently adjust the text at rest automatically for readability, inserting a space between each word. So the format is both highly readable and lines break naturally on word boundaries. For example, if you name a type OrderLine, the editor will display the text as Order Line.

These properties play an important role in defining the ubiquitous language for a given Bounded Context, where the Bounded Context is the focus of a Domain Model. The Glossary is used to summarize all of the definitions in a Domain Model, displaying a full ubiquitous language. They can also be used by the CodeUp! source code implementation and review tool.

Note: Context Map, C4, and Hexagonal elements have their own (non-common) properties dialog boxes suited to what those elements are.

How aggregates behave

The aggregate is the element most often misused, so DomoModeler is opinionated about it:

  1. The aggregate element is the aggregate root entity. There is no separate "root entity" element. You name the aggregate element for the concept it represents, and that is its root.
  2. It is a superset of an entity. Everything an entity has, an aggregate has, plus composition containment.
  3. Reference other aggregates by their root. You can draw the reference to the other aggregate, never into its insides. Although this is supported by both in the pattern definition and the model editor, it is not recommended as a contemporary practice for several reasons. Reference by aggregate identity instead.
  4. Composition means lifecycle. Deleting an aggregate deletes what it contains.
  5. It contains entities, value objects, and policies only. A policy goes inside when its rule pertains specifically to that aggregate. A domain service is never a child of an aggregate. The relationship between them is a dependency, drawn as a connection.

Keyboard

Key Element Key Element
A Aggregate E Domain Event
N Entity P Policy
O Value Object G Saga
R Domain Service Y Repository
M Module F Factory
C Record V View
T Struct U User Role
I User Interface Q Query

Syncing with the Context Map

A Domain Model created from a bounded context keeps a link back to its Context Map. The Sync with Context Map button in the toolbar opens a review of what this model would contribute back, which is its commands, events, and policies joining the bounded context's behavior model. The strategic view therefore stays honest as the tactical design develops, and nothing is pushed without you seeing it first.

Generating a Glossary

Point a Glossary at a Domain Model and it builds a definition table from the model's elements (name, type, and description) that you can then edit and export.
